MQTT

Arrivals Board can subscribe to an MQTT broker and display incoming messages on the board in real time. This makes it an excellent companion for home automation systems like Home Assistant, Node-RED, or any service that can publish to an MQTT topic. Messages arrive the moment they are published, and Arrivals reconnects automatically if the connection drops.

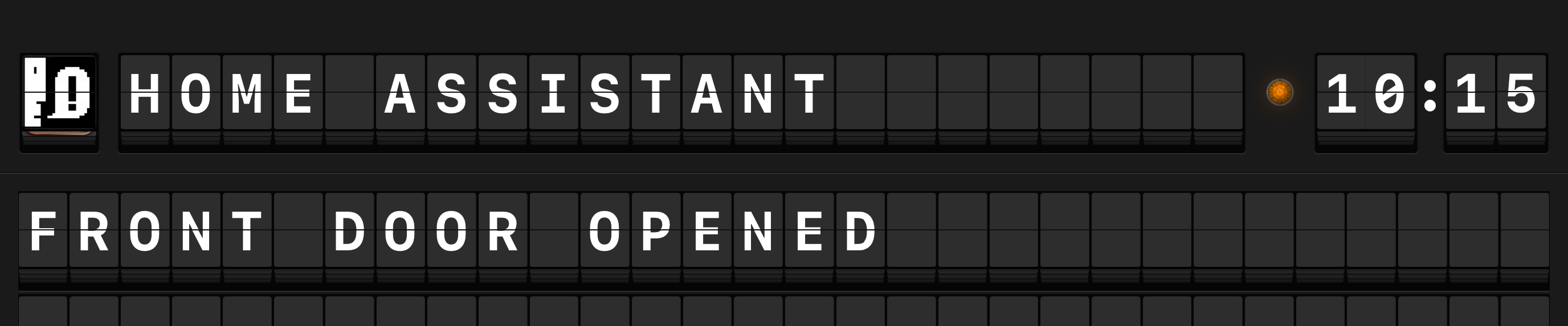

MQTT source on the board

Setup¶

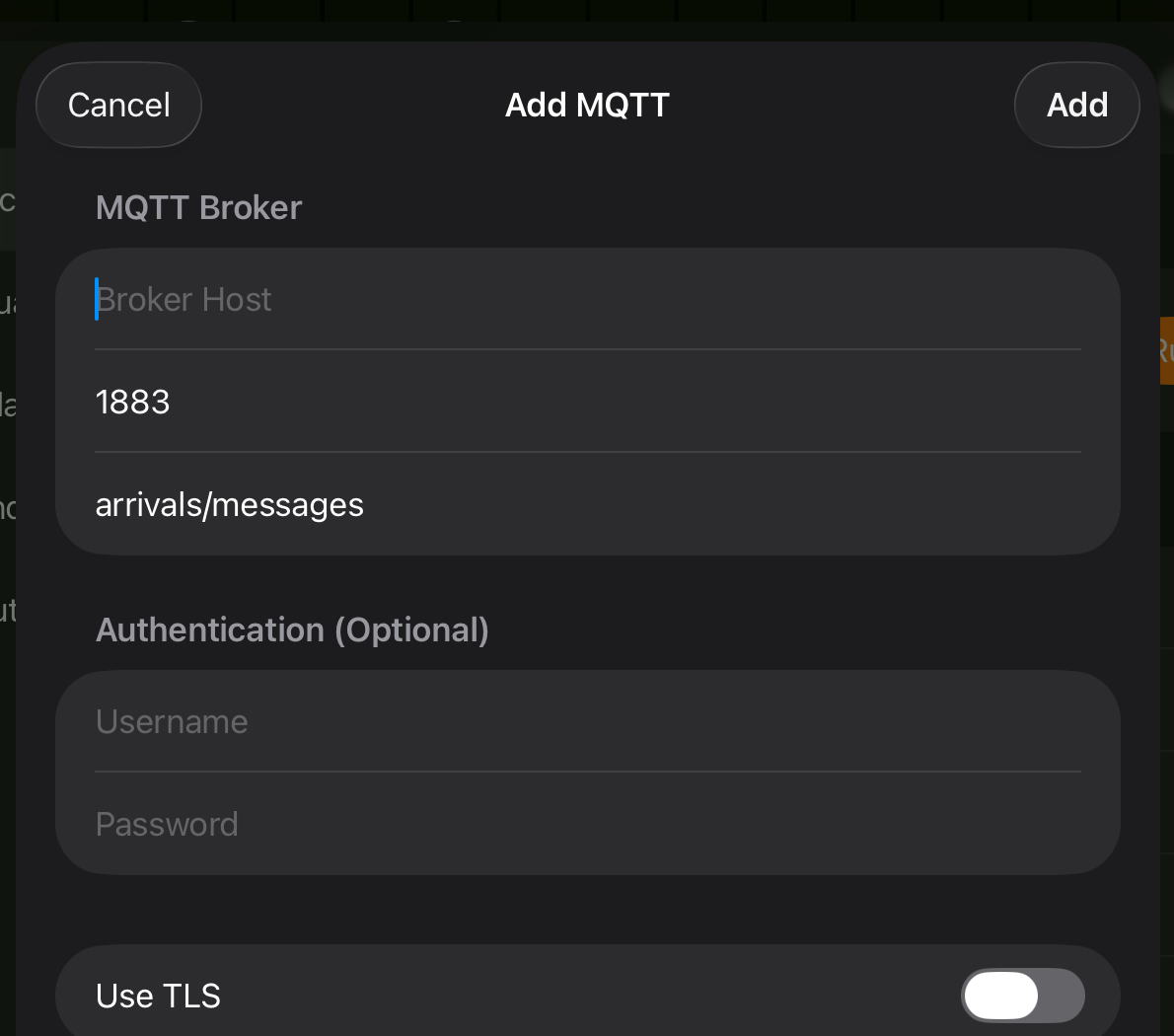

Add MQTT sheet

Open Settings and tap Sources > MQTT.
Toggle Enable on.
Enter the Broker Host (e.g., 192.168.1.50 or mqtt.example.com).
Adjust the Port if your broker uses something other than the default 1883.
If your broker requires authentication, enter a Username and Password.
Set the Topic to subscribe to (default is arrivals/messages).
Toggle Use TLS on if your broker requires an encrypted connection.
Tap Connect. Arrivals connects and begins listening for messages.

Open Settings and navigate to Sources > MQTT.
Toggle Enable on.
Enter the Broker Host using the on-screen keyboard.
Adjust the Port if needed.
Enter Username and Password if required by your broker.
Set the Topic (default is arrivals/messages).
Toggle Use TLS on if needed.
Select Connect. Arrivals connects and begins listening for messages.

iCloud sync

MQTT configuration syncs via iCloud. Set it up once on iPad and your Apple TV will pick up the same broker settings automatically. Credentials are stored securely in the Keychain.

Configuration reference¶

Option	Default	Description
Broker Host	---	Hostname or IP address of the MQTT broker
Port	1883	Port for the MQTT connection
Username	---	Optional username for broker authentication
Password	---	Optional password for broker authentication
Topic	`arrivals/messages`	The MQTT topic to subscribe to
Use TLS	Off	Enable TLS encryption for the connection

Message payload format¶

Arrivals accepts two payload formats on the subscribed topic.

JSON payload¶

Publish a JSON object with any combination of the following fields:

Field	Type	Required	Description
`sender`	String	No	The name displayed in the sender column. If omitted, the topic name is used. Supports inline formatting.
`text`	String	Yes	The message text displayed on the board. Supports inline formatting.
`indicatorColor`	String	No	Hex color for the indicator lamp (e.g., `"#FF0000"` for red)
`priority`	String	No	Controls when the message is displayed. Accepts `"queue"`, `"next"`, or `"now"`. Defaults to `"queue"`.
`urgent`	Boolean	No	Legacy field. When `true`, equivalent to `"priority": "now"`.

Example:

{
  "sender": "Home Assistant",
  "text": "Front door opened",
  "indicatorColor": "#FF8800",
  "urgent": false
}

Plain text payload¶

If the payload is not valid JSON, Arrivals treats the entire payload as the message text and uses the MQTT topic name as the sender.

Example: Publishing Garage door closed to the topic arrivals/messages displays a message with sender "arrivals/messages" and text "Garage door closed".

Use JSON for full control

Plain text payloads are convenient for quick tests, but JSON payloads give you control over the sender name, indicator color, and urgency. Use JSON when publishing from automation systems.

Troubleshooting¶

Connection refused

If Arrivals cannot connect to the broker, check the following:

The Broker Host and Port are correct.
The broker is running and reachable from your device's network.
If using TLS, ensure the broker's certificate is valid and the port matches the TLS listener (often 8883 rather than 1883).
If authentication is required, verify the Username and Password are correct.

Firewall and network

Your network must allow connections on the configured port. If your broker is on a remote server, ensure the port is not blocked by a firewall. For local brokers, both your device and the broker must be on the same network (or reachable via VPN).

Testing with mosquitto

You can quickly test the MQTT source using the mosquitto_pub command-line tool:

mosquitto_pub -h your-broker -t arrivals/messages \
  -m '{"sender":"Test","text":"Hello from MQTT!"}'

If you do not have a broker yet, Mosquitto is a lightweight, open-source MQTT broker that runs on most platforms.
